Research Article

Korean Journal of Plant Resources. December 2020. 645-650
https://doi.org/10.7732/kjpr.2020.33.6.645

ABSTRACT


MAIN

  • Introduction

  • Materials and Methods

  •   Preparation of fermented jujube

  •   Lifespan of transgenic daf-16 and mev-1

  •   Thermo-resistance assay

  •   Anti-oxidation assay

  •   Statistical analysis

  • Results and Discussion

  •   Life-span mechanism of transgenic daf-16 and mev-1

  •   Thermal stress resistances

  •   Anti-oxidative stress effects

Introduction

Aging induces physiological changes in all systems in the body. It is known that balance function, spontaneity, and oxygen intake according to aging are reduced by about 20-60% compared to when health is at its peak (Shephard, 2009). In addition, with aging, the content of chondroitin sulfate in the bone joints and the glomerular filtration rate (GFR) of the kidneys decrease (Ishimaru et al., 2014) (Weinstein and Anderson, 2010), (Nakamura et al., 2002). Also bifidobacterium of the intestinal flora is reduced by aging (Perez Martinez et al., 2014). Experimental animals such as Drosophila or Caenorhabditis elegans are widely used for anti-aging research. The Insulin/IGF-1 (IIS) signaling pathway is known to play an important role in the regulation of aging in C. elegans. When insulin or insulin-like substances bind to daf-2 dimer, a type of IGF-1 receptor, it induces stress resistance and phosphorylation of daf-16 (FoxO transcription factor), an anti-aging factor. In this process, the nuclear translocation of daf-16 is disturbed, and therefore aging is promoted by reduction of stress resistance and oxidative damage (Cohen and Dillin, 2008). Daf-16 is known to reduce toxicity by producing low-toxic high-molecular-mass by regulating active aggregation of toxic oligomers in the nervous system (Hsu et al., 2003). Thus, the regulation of daf-16 could be a major target of aging control.

In recent years, C. elegans anti-aging research using natural products have been reported such as stress resistance of orange extract (Wang et al., 2020a), antioxidant of Jatu-Phala-Tiga, a Thai traditional drug prescription (Wetchakul et al., 2019). Neuroprotective and longevity effects of Streblus asper leaves (Prasansuklab et al., 2017), inhibitory activity of acethylcholine esterase of C. elegans CL4176 strain of alkaloids isolated from Seoksan (石蒜, Scientific name: Lycoris radiata) (Xin et al., 2013), and the life extension effect of antlers (Wang et al., 2020b) have been reported on anti-aging journals. The author has studied the life-span extension effect of C. elegans using Simjeondaebo-tang and cinnamon (Yu et al., 2010). As a previous study, the anti-aging effect of fermented jujube was reported (Ji et al, 2014). In the previous study, it was observed that the extract of jujube fermented for 7 days and 14 days with a strain of Laetiporus sulphureus CS0218 (KFCC 11494P) had a significant effect on extending the lifespan of the C. elegans N2 strain. In this study, the transgenic daf-16 strain and mev-1 strain were used to elucidate the mechanism of life-span effect of fermented jujube. And we were conducted the thermos-resistance test and antioxidant test of fermented jujube.

Materials and Methods

Preparation of fermented jujube

For the preparation of jujube fermentation solution, 100 g of jujube powder was added to 1L of purified water, and Laetiporus sulphureus CS0218 (KFCC 11494P) strain was added to the culture solution and cultured while maintaining at 37℃ and pH 5-7 using a 5 L fermentation tank. The culture broth was removed by centrifugation, and the fermented product was filtered to make a final 70% (V/V) ethanol aqueous solution, evaporated at 50℃ (Eyela, Japan), and freeze-dried. Vourcher specimens of jujube (NBU-HP-S-016) are kept at the Department of Emergency Medical Rescue at Nambu University.

Lifespan of transgenic daf-16 and mev-1

Transgenic daf-16 strain and mev-1 strain (Caenorhabditis Genetics Center, University of Minnesota, Minneapolis, MN, USA) were provided by Professor Jo Jung-Hoon of Chosun University and used in the experiment. In previous studies (Ji et al., 2014), the authors have confirmed the lifespan effect of fermented jujube through the N2 strain, and this study was conducted to find out which mechanism is involved in aging. According to the method of Brenner (Brenner, 1974), a lawn was made with the OP50 strain on a Nematode Growth Medium (NGM), and C. elegans was transferred to a new NGM agar plate every 3-4 days and cultured thereon. To obtain nematodes of same age, about 100 nematodes from Syncronized L1 stage were transferred to NGM agar plate and incubated for 72 hours to become L4 stage Lavae. Ten adult worms were transferred to a 6cm plate treated with drugs and control plate, followed by egg laying for about 3 hours, and the adult worm was removed from the plate. After 72 hours, the adult worm was transferred to a new plate and the dead worm was counted. During the reproductive period, nematodes were transferred to a new NGM agar plate treated with the drug every day, and then transferred to a new NGM agar plate every 3 days, and the survival rate was measured. The survival of nematodes was assessed as being dead if there was no reaction by careful contact with platinum wire. The experiment was conducted at 20℃ which is the normal growth condition and 25℃ which is the thermal stress growth condition. Control group (drug-free group), jujube extract group (ZJF-200 ㎍/mL), jujube extract group fermented on 7 days (F7-ZJF-200 ㎍/mL), jujube extract group fermented on 14 days (F14-ZJF -200 ㎍/mL) was divided and conducted twice for each experiment.

Thermo-resistance assay

One hundred nematodes of the synchronized L1 stage were transferred to an NGM agar plate and cultured for 72 hours to become an L4 stage Lavae. Ten adult worms were transferred to a 6cm plate treated with drugs and control plate, followed by egg laying for about 3 hours, and the adult worm was removed from the plate. During the reproductive period, nematodes were transferred to a new NGM agar plate treated with the drug every day and thermal stress was applied for 8 hours in a 35℃ incubator on the 6th day. And the number of dead nematodes was counted and compared with the control group.

Anti-oxidation assay

One hundred nematodes of the synchronized L1 stage were transferred to an NGM agar plate and cultured for 72 hours to become an L4 stage Lavae. 10-15 Synchronized L4 stage nematodes were transferred to drug-treated NGM agar plate and cultured. During the reproductive period, nematodes were transferred daily to fresh media treated with the drug. On the 6th day, it was transferred to M9 buffer containing 0.8uM hydrogen peroxide, subjected to oxidative stress for 8 hours, and survival was measured.

Statistical analysis

For statistical treatment, the difference between the drug-treated group and the control group was confirmed by the Chi-square test by performing a log-rank test. SPSS 20.0 and prism 5.2 were used for statistical analysis.

Results and Discussion

Jujube (Zizyphus jujube) is known to have the effect of neuroprotection and hematopoietic (Bensky et al., 2004). Boeun (Chungcheongbuk-do) jujube is known to have a large fruit, a lot of flesh, and a high sugar content. The reasons for the excellent quality are the clean natural environment of ​​Mt. Songni, abundant sunlight, and a large daily temperature range. In previous studies (Ji et al., 2014), the life-span extension effect of C. elegans was observed for jujubes that were not fermented and jujubes fermented for 7 and 14 days. As a result, in the case of non-fermented jujube extract, no life-prolonging effect was observed, and the jujube extract (F7-ZJF-200 ㎍/mL) on the 7th day of fermentation showed a significant life-prolonging effect. In this study, the mechanism of lifespan of fermented jujube extract in transgenic C. elegans was investigated.

Life-span mechanism of transgenic daf-16 and mev-1

The mechanism of the N2 strain life-extending effect was investigated using the transgenic C. elegans from which the daf-16 gene was removed (Brenner, 1974). In the N2 strain, significant activities of F7-200 and F-14-200 were observed under stress-inducing conditions at 25℃. The daf-16 strain was incubated at 25℃, and the drug-treated group and the non-treated group were compared, in order to check whether the daf-16 signal was related. As a result, it was observed that there was no difference of lifespan between the drug-treated group (7-day fermented ex. (F7-zjf-200 ㎍/mL), 14-day fermented ex (F14-zjf-200 ㎍/mL)) and the non-treatment group (Figs. 1 and 2). It could be estimated that the jujube extract is related to the daf-16 signal. The mev-1 strain is a ROS sensitive nematode by removing genes related to the electron transport system. In order to confirm whether it is related to the ROS sensitivity signal, the mev-1 strain was incubated at 25℃ and the drug-treated group and the non-treated group were compared. As a result, there was no difference in life-span extension effect between the drug-treated group (7-day fermented ex. (F7-zjf-200 ㎍/mL), 14-day fermented ex (F14-zjf-200 ㎍/mL)) and the control group, and it could be estimated that the drug is related to the mev-1 signal (Figs. 3 and 4, Table 1).

/media/sites/kjpr/2020-033-06/N0820330610/images/kjpr_33_06_10_F1.jpg

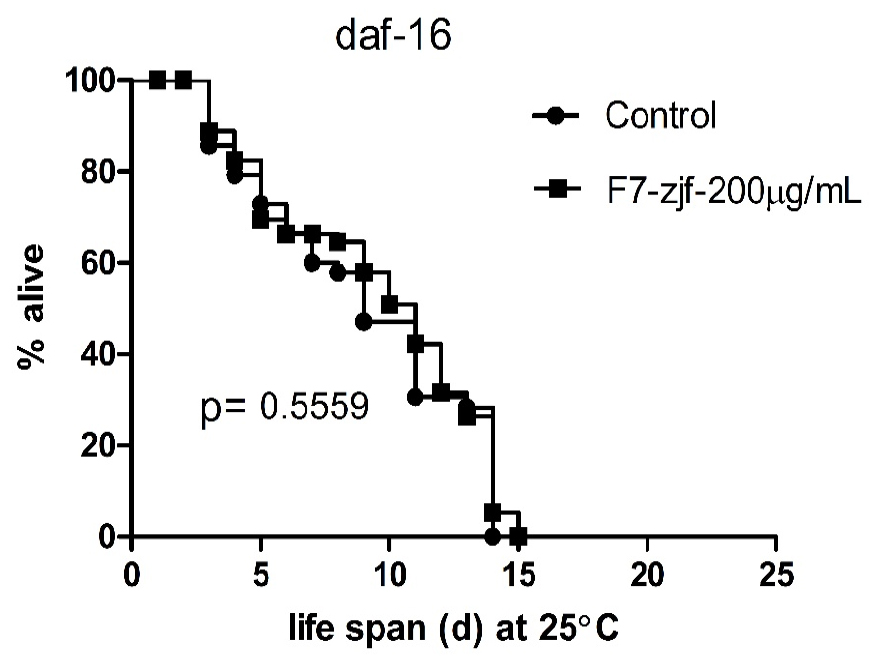

Fig. 1

Effect of 7-day fermented jujube (200 ㎍/mL) on lifespan in transgeinc daf-16 C. elegans.

/media/sites/kjpr/2020-033-06/N0820330610/images/kjpr_33_06_10_F2.jpg

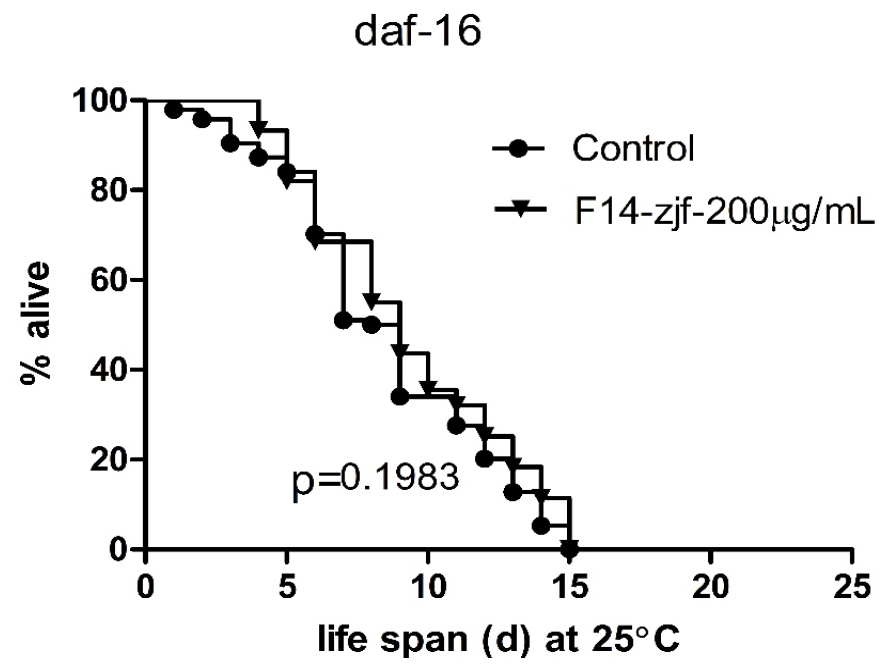

Fig. 2

Effect of 14-day fermented jujube (200 ㎍/mL) on lifespan in transgenic daf-16 C. elegans.

/media/sites/kjpr/2020-033-06/N0820330610/images/kjpr_33_06_10_F3.jpg

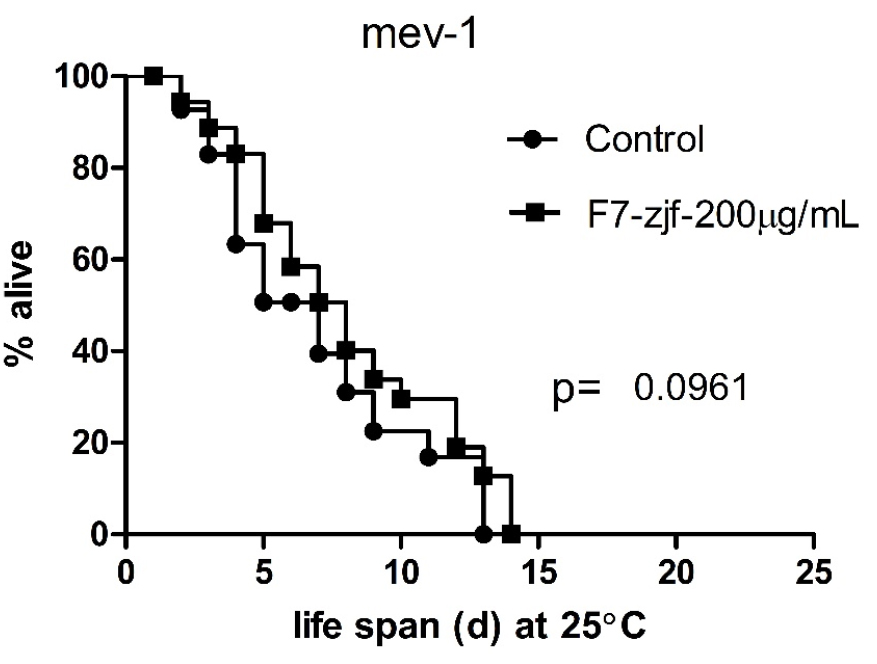

Fig. 3

Effect of 7-day fermented jujube (200 ㎍/mL) on lifespan in transgenic mev-1 C. elegans.

/media/sites/kjpr/2020-033-06/N0820330610/images/kjpr_33_06_10_F4.jpg

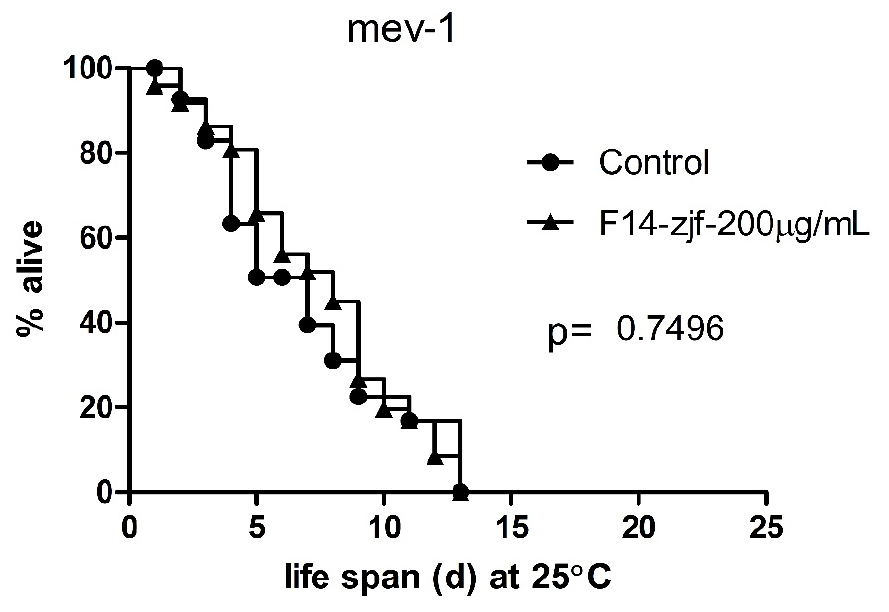

Fig. 4

Effect of 14-day fermented jujube (200 ㎍/mL) on lifespan in transgenic mev-1 C. elegans.

Table 1.

Summary of life span of daf-16, mev-1 strain and resistance of thermal and oxidative stress

Assay Strain Drug
(㎍/mL)
p value Statistics
Life span Daf-16 F7-200
(25℃)
0.556 Log-rank test
F14-200
(25℃)
0.198
Mev-1 F7-200
(25℃)
0.096
F14-200
(25℃)
0.750
Thermal
stress
N2 F7-200 0.003 Anova test
(Bonferroni's Post hoc test)
Oxidative
stress
N2 F7-200 0.004 Anova test
(Bonferroni's Post hoc test)
F14-100 0.007

Thermal stress resistances

In the thermal stress experiment, the group treated with 200 ㎍/mL of the 7-day fermentation of jujube extract showed a significant (t=4.017) activity in thermal stress resistance with a 12% higher survival rate than the control group (Fig. 5). For comparison between groups, a one-way anova analysis was performed (F=4.369, p=0.02), and there was a significant difference (p=0.003) between the control group and 200 ㎍/mL of 7-day cultured jujube (F7-200) (Fig. 2). Jonckheere-Terpstra test was performed to find out whether there was a change in the efficacy of the drug according to the fermentation period, but there was no tendency to increase or decrease the efficacy of the drug according to the fermentation period.

/media/sites/kjpr/2020-033-06/N0820330610/images/kjpr_33_06_10_F5.jpg

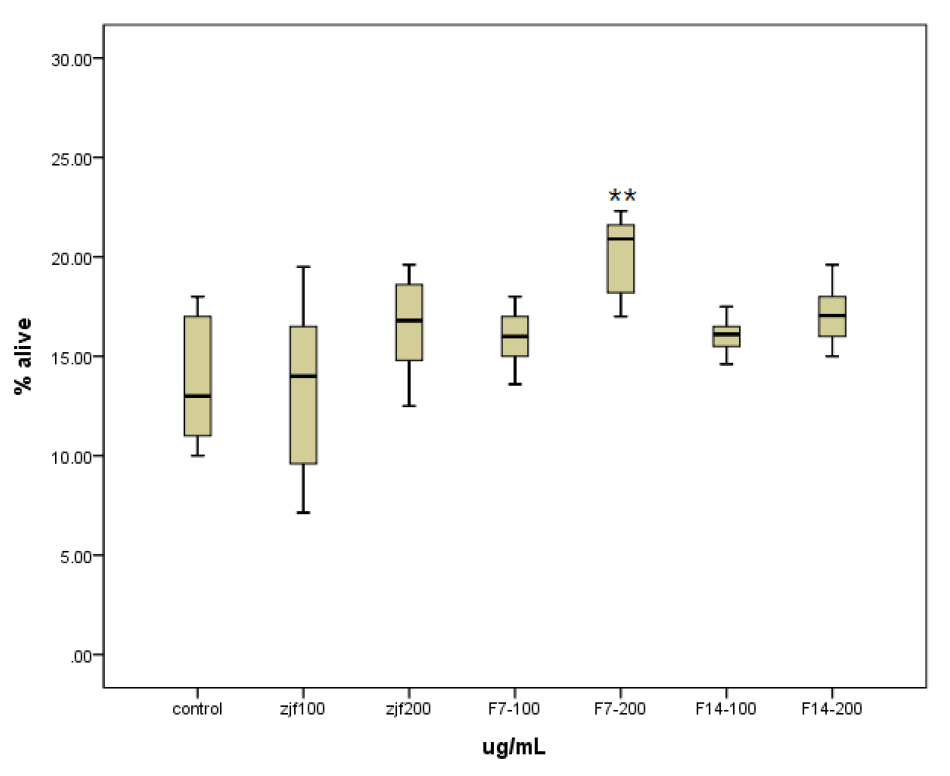

Fig. 5

Effect of fermented jujube on thermal stress in C. elegans (F7-200: 7-day fermented jujube ex. (200 ㎍/mL), ** p ≤ 0.01).

Anti-oxidative stress effects

We were conducted a survival test in H2O2 to find out the relationship between the oxidative stress resistance and aging inhibition of the fermented jujube extract. As a result, it was found that 200 ㎍/mL of fermentation extract for 7 days and 100 ㎍/mL of fermentation extract for 14 days have significant activity in oxidative stress resistance compared to the control group (Fig. 6). In both Bonferroni, Tukey, and Dunnett T3 method, there was a significant difference from the jujube group in 200 ㎍/mL (F7-200) of culture for 7 days and 100 ㎍/ml of culture for 14 days (F14-100). Jonckheere-Terpstra test was performed to find out whether there was a change in the efficacy of the drug according to the fermentation period, but there was no tendency to increase or decrease the efficacy of the drug according to the fermentation period (p=0.051). This study showed similar results to the antioxidant effect using conventional natural products (Jung et al., 2019; Suh et al., 2020).

/media/sites/kjpr/2020-033-06/N0820330610/images/kjpr_33_06_10_F6.jpg

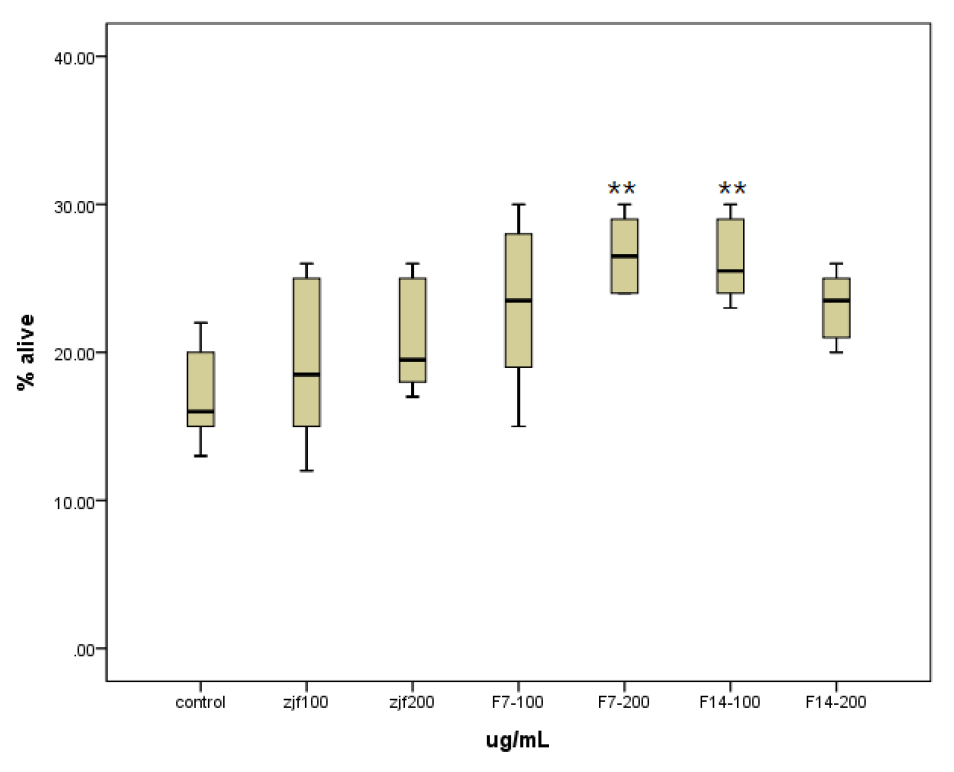

Fig. 6

Effect of fermented jujube on oxidative stress in C. elegans (F7-200: 7 days fermented jujube ex. (200 ㎍/mL), F14-100: 14-day fermented jujube ex. (100 ㎍/mL), ** p ≤ 0.01).

Acknowledgements

This study were supported by grant from the Small and Medium Business Administration R&D Project, Republic of Korea (S2007992) and research funds from Nambu University (2018).

References

1
Bensky, D., S. Clavey and E. Stoger. 2004. Chinese Herbal Medicine Materia Medica. 3rd Edition. Eastland Press. USA. pp. 730-732.
2
Brenner, S. 1974. The genetics of Caenorhabditis elegans. Genetics 77:71-94.
3
Cohen, E. and A. Dillin. 2008. The insulin paradox: Aging, proteotoxicity and neurodegeneration. Nat. Rev. Neurosci. 9:759-767. 10.1038/nrn247418769445PMC2692886
4
Hsu, A.L., C.T. Murphy and C. Kenyon. 2003. Regulation of aging and age-related disease by DAF-16 and heat-shock factor. Science 300:1142-1145. 10.1126/science.108370112750521
5
Ishimaru, D., N. Sugiura, H. Akiyama, H. Watanabe and K. Matsumoto. 2014. Alterations in the chondroitin sulfate chain in human osteoarthritic cartilage of the knee. Osteoarthritis Cartilage 22:250-258. 10.1016/j.joca.2013.11.01024280246
6
Ji, B.W., S.M. Park, S. Koo and Y.B. Yu. 2014. Lifespan Extension of Fermented Zizyphus jujuba Fruits in Caenorhabditis elegans. Korean J. of Acupuncture 31:218-224 (in Korean). 10.14406/acu.2014.036
7
Jung, Y.J., A.D. Assefa, J.E. Lee, H.S. Lee, J.H. Rhee and J.S. Sung. 2019. Analysis of antioxidant activity and serotonin derivatives in safflower (Carthamus tinctorius L.) germplasm collected from five countries. Korean J. Plant Res. 32(5):423-432(in Korean).
8
Suh, J.T., K.D. Kim, H.B. Sohn, S.H. Kim, S.Y. Hong and Y.H. Kim. 2020. Comparative study of antioxidant activities at different cultivation area and harvest date of the Gomchwi 'Sammany' variety. Korean J. Plant Res. 33(4):245-254 (in Korean).
9
Nakamura, M., Y. Takahashi, T. Ohrui, M. Yamaya, H. Kubo, M. Numasaki and H. Sasaki. 2002. Criteria of impairment of pulmonary function using Japanese standard values. Nihon Kokyuki Gakkai Zasshi 40:925-928.
10
Perez Martinez, G., C. Bauerl and M.C. Collado. 2014. Understanding gut microbiota in elderly's health will enable intervention through probiotics. Benef. Microbes 5:235-246. 10.3920/BM2013.007924889891
11
Prasansuklab, A., K. Meemon, P. Sobhon and T. Tencomnao. 2017. Ethanolic extract of Streblus asper leaves protects against glutamate-induced toxicity in HT22 hippocampal neuronal cells and extends lifespan of Caenorhabditis elegans. BMC Complement. Altern. Med. 17:551. 10.1186/s12906-017-2050-329282044PMC5745612
12
Shephard, R.J. 2009. Maximal oxygen intake and independence in old age. Br. J. Sports Med. 43:342-346. 10.1136/bjsm.2007.04480018403414
13
Wang, J., N. Deng, H. Wang, T. Li, L. Chen, B. Zheng and R.H. Liu. 2020a. Effects of Orange Extracts on Longevity, Healthspan, and Stress Resistance in Caenorhabditis elegans. Molecules 25(2):351-368. 10.3390/molecules2502035131952185PMC7024185
14
Wang, X., H. Li, Y. Liu, H. Wu, H. Wang, S. Jin, Y. Lu, S. Chang, R. Liu, Y. Peng, Z. Guo and X. Wang. 2020b. Velvet antler methanol extracts (MEs) protects against oxidative stress in Caenorhabditis elegans by SKN-1. Biomed. Pharmacother. 121:109668. 10.1016/j.biopha.2019.10966831766103
15
Weinstein, J.R. and S. Anderson. 2010. The aging kidney: Physiological changes. Adv. Chronic Kidney Dis. 17:302-307. 10.1053/j.ackd.2010.05.00220610357PMC2901622
16
Wetchakul, P., J.A. Goon, A.E. Adekoya, O.J. Olatunji, S. Ruangchuay, P. Jaisamut, A. Issuriya, N. Kunworarath, S. Limsuwan and S. Chusri. 2019. Traditional tonifying polyherbal infusion, Jatu-Phala-Tiga, exerts antioxidant activities and extends lifespan of Caenorhabditis elegans. BMC Complement. Altern. Med. 19:209. 10.1186/s12906-019-2626-131409340PMC6693129
17
Xin, L., R. Yamujala, Y. Wang, H. Wang, W.H. Wu, M.A. Lawton, C. Long and R. Di. 2013. Acetylcholineestarase-inhibiting alkaloids from Lycoris radiata delay paralysis of amyloid beta-expressing transgenic C. elegans CL4176. PLoS One 8:e63874. 10.1371/journal.pone.006387423675513PMC3652842
18
Yu, Y.B., L. Dosanjh, L. Lao, M. Tan, B.S. Shim and Y. Luo. 2010. Cinnamomum cassia bark in two herbal formulas increases life span in Caenorhabditis elegans via insulin signaling and stress response pathways. PLoS one 5:e9339. 10.1371/journal.pone.000933920179756PMC2825258
